Custom Splash screen ( Boot Logo )

Post  villy_joe8 on Wed May 05, 2010 3:38 pm

Custom Splash screen/Boot logo Guide
I am not responsible if you broke your Spica, you have a choice if you want to do this or not
i followed the guide by markus http://www.android-hilfe.de/root-hacking-modding-fuer-samsung-spica/21416-bootlogo-veraendern.html the instuction is in german, so i had to translate it using translate.google.com

prepare the following files:


-Logo Creator v1.1.zip http://www.android-hilfe.de/attachments/root-hacking-modding-fuer-samsung-spica/6997d1271450009-bootlogo-veraendern-logo-creator-v1.1.zip
-spica_jc3.ops
-your new logo,


Prepare your new logo

>create a 320x480 .png logo, (NOTE: logo must be less than 40kb)

>the filename of the logo must be logo.png


WARNING: if the size of the logo is too large, you can seriously damage your Spica.






Creating .tar archive


>extract Logo Creator v1.1.zip

>Open Spica Boot Logo Creator Folder

>Open Spica Boot Logo Creator1.exe

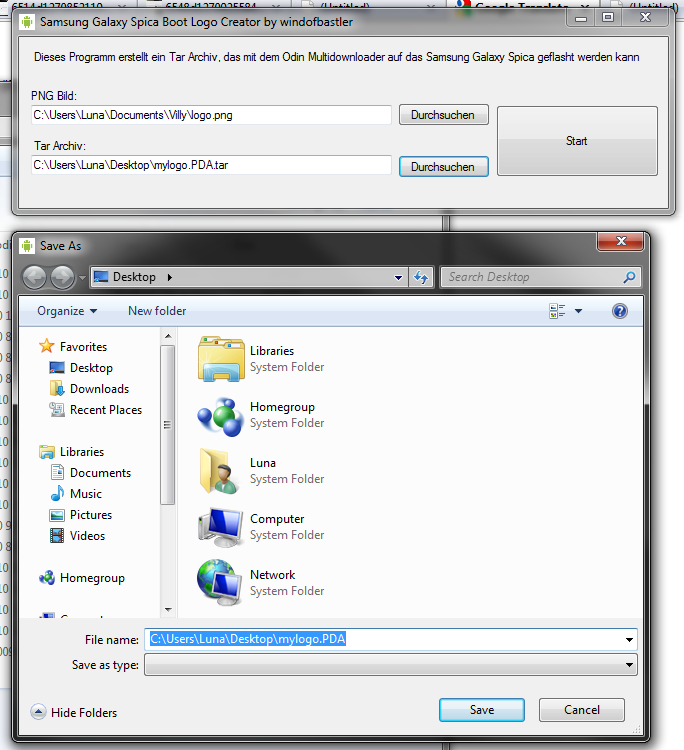

NOTE: the app is in german language, see the screenshot below. i'll show you where to put the .png file

>click "Durchsuchen"/browse? to put your logo.png file to PNG Bild: field

>in Tar Archiv: feild click "Durchsuchen"

>new window will appear, put "mylogo" as a filename (quote not included).



>click save

>after clicking save button, second window will appear, notice that the path of the file is included and the end of the filename is ".PDA". Click again the save button to proceed.



> click start button to create .tar archive.








Flashing mylogo.PDA.tar with Odin



>Boot your phone using download mode, press camera, volume down and power

>connect to PC make sure Odin detects your phone (Yellow)

>click reset files button

>put spica_jc3.ops to OPS field

>put mylogo.PDA.tar to PDA field

>uncheck One Package and Debug ONLY

>click start button, (NOTE: Phone will reboot and wait until you see PASSED in ODIN) it takes less than a minute, but just wait until you see PASSED in Odin, just to be sure Razz

villy_joe8

Posts : 10
Join date : 2010-05-03
Age : 28

View user profile

Back to top Go down

Re: Custom Splash screen ( Boot Logo )

Post  polarb3ar on Thu May 06, 2010 12:13 am

sipag ni villy!

villy joe luna!! idol na kita!! hahaha

polarb3ar

Posts : 8
Join date : 2010-05-04

View user profile

Back to top Go down

Re: Custom Splash screen ( Boot Logo )

Post  villy_joe8 on Thu May 06, 2010 8:59 am

Wahahaha! adik ka hans yu! =))
